Available Models
Specifications

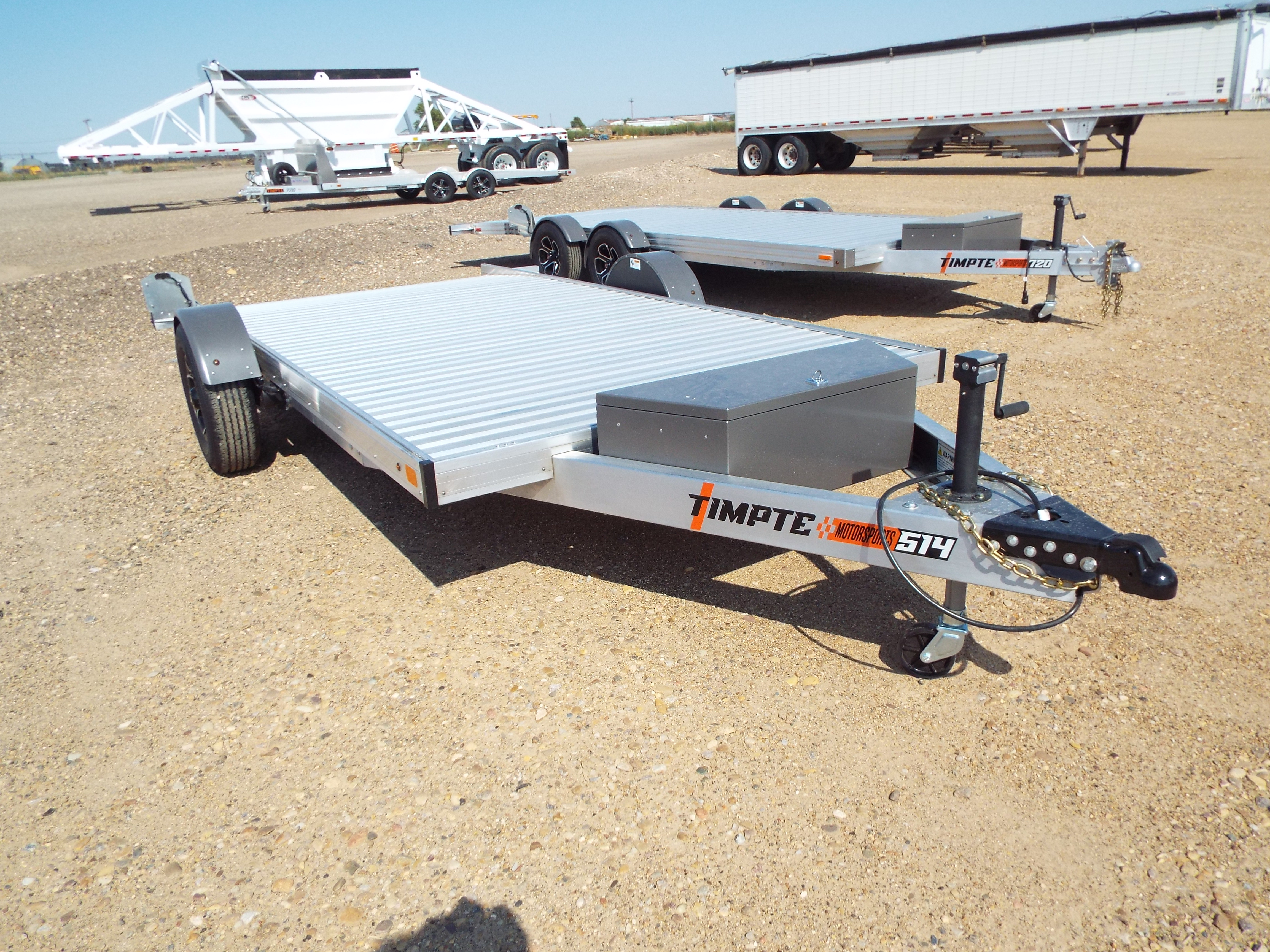

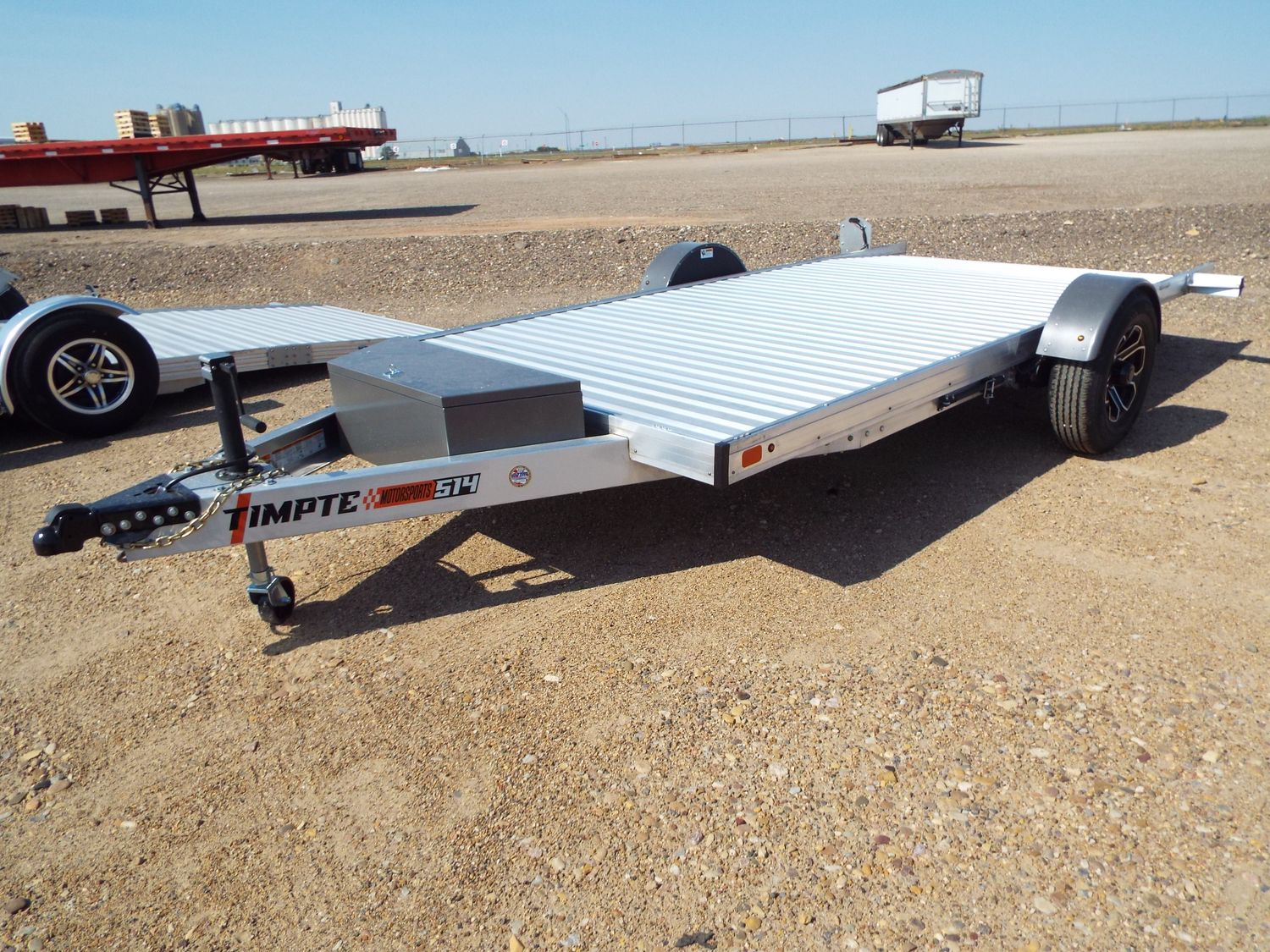

- Model: 514
- GVW: 5000lbs
- Deck Size: 14’ x 80”
- Empty Weight: Est. 1,280 lbs
- Overall Width: 102"
- Overall Length: 19' 1"
- Tongue Length: 61"
- Deck Height: 18"
- Loading Angle: 4 Degrees
- Wheel Size: 15"
- Tire Size: ST225/75R15
- Axle/Suspension: Torsion
- Brakes: Electric Self Adjusting
- Coupler: 2-5/16”
- Coupler Position: Fixed
- Jack Style: Top Crank
- Jack Rating: 2,000 lbs
- Tie-Downs: 4 D-Rings (20 Mounting Locations - 8 per side 4 in front)
- Lighting: LED
Specifications

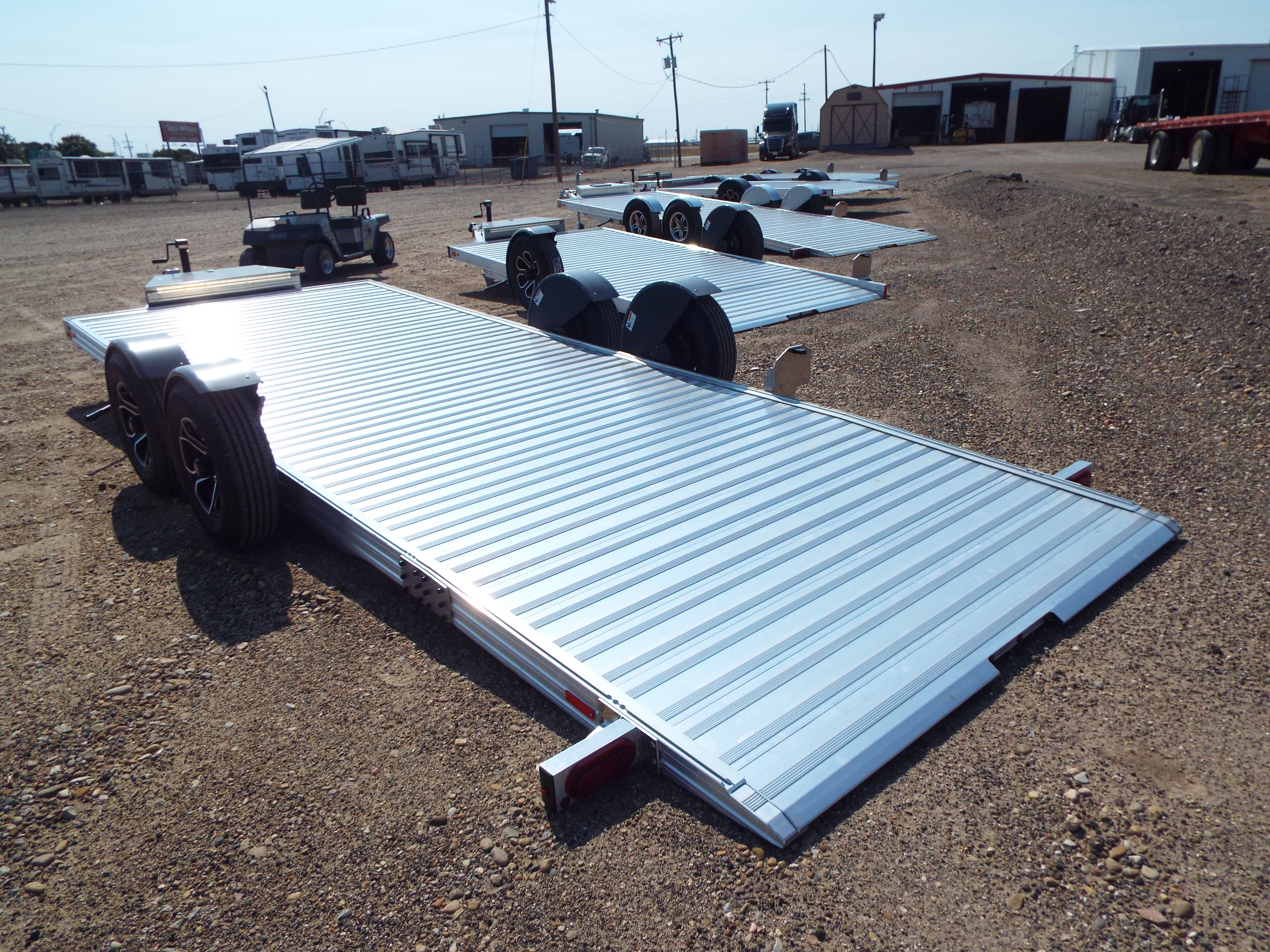

Model: 720
GVW: 7000lbs
Deck Size: 20’ x 82”
Empty Weight: Est. 1,980 lbs
Overall Width: 102"
Overall Length: 25’ 1”
Tongue Length: 61"
Deck Height: 18"
Loading Angle: 4 Degrees
Wheel Size: 14"
Tire Size: ST205/75R14
Axle/Suspension: Torsion
Brakes: Electric Self Adjusting
Coupler: 2-5/16”
Coupler Position: Fixed
Jack Style: Top Crank
Jack Rating: 2,000 lbs
Tie-Downs: 4 D-Rings (24 Mounting Locations - 10 per side 4 in front)
Lighting: LED
Specifications

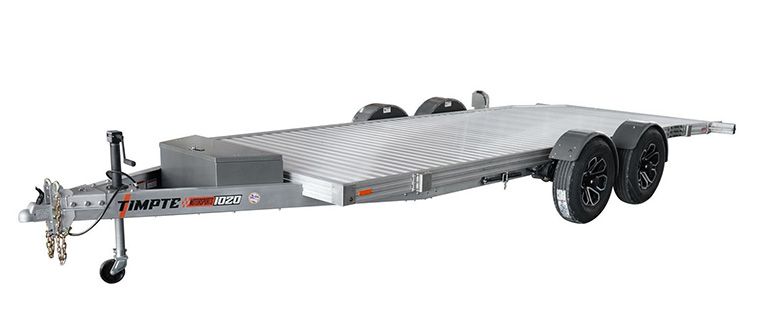

Model: 1020
GVW: 10000lbs
Deck Size: 19' 6" x 81”
Empty Weight: Est. 2,420 lbs
Overall Width: 102"
Overall Length: 24’ 6”
Tongue Length: 61"
Deck Height: 24"
Loading Angle: 4 Degrees
Wheel Size: 15"
Tire Size: ST225/75R15
Axle/Suspension: Torsion
Brakes: Electric Self Adjusting
Coupler: 2-5/16”
Coupler Position: Adjustable
Jack Style: Side Crank
Jack Rating: 2,000 lbs
Tie-Downs: 4 D-Rings (24 Mounting Locations - 10 per side 4 in front)
Stake Pockets: 4
Lighting: LED

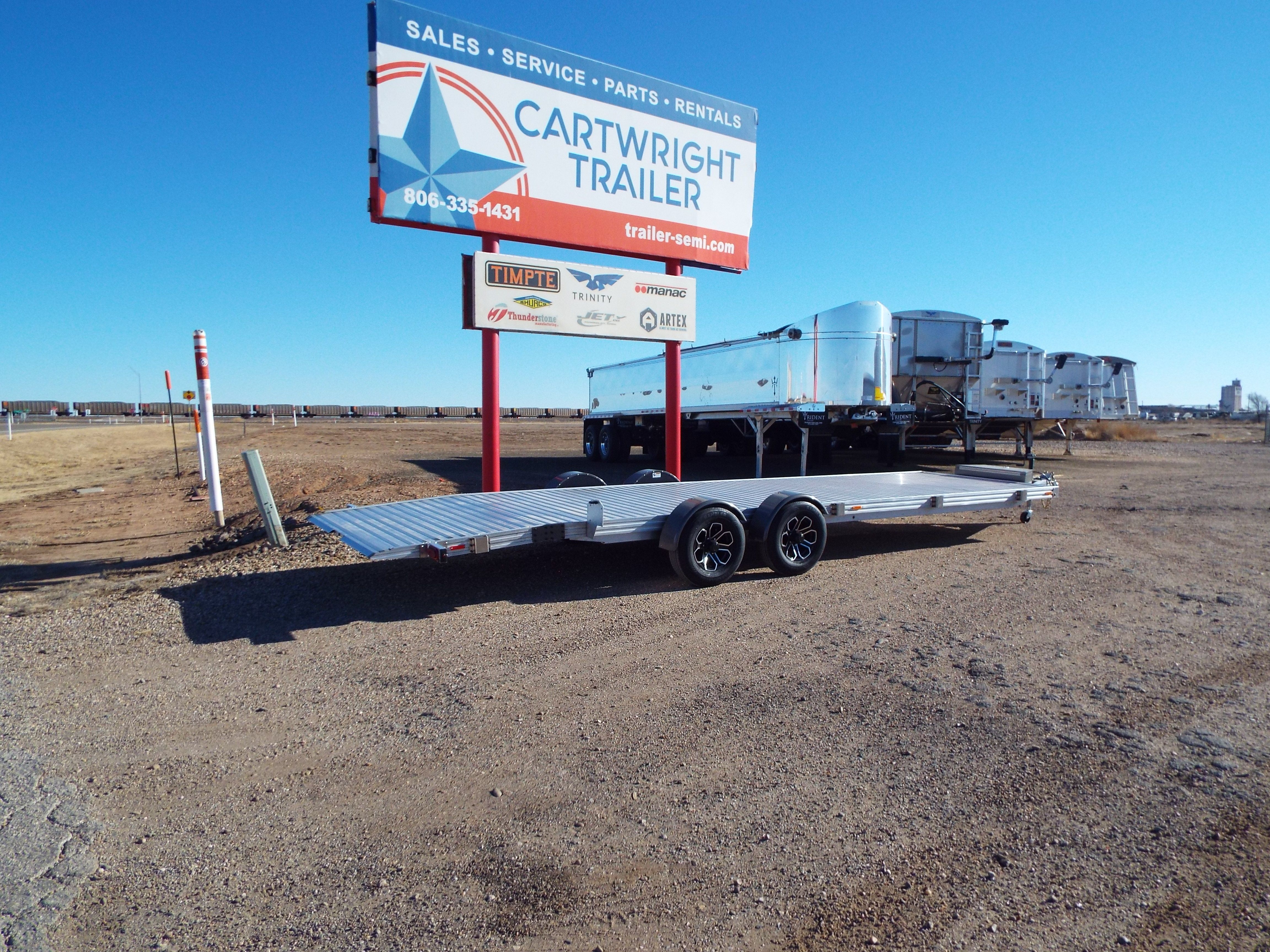

Specifications

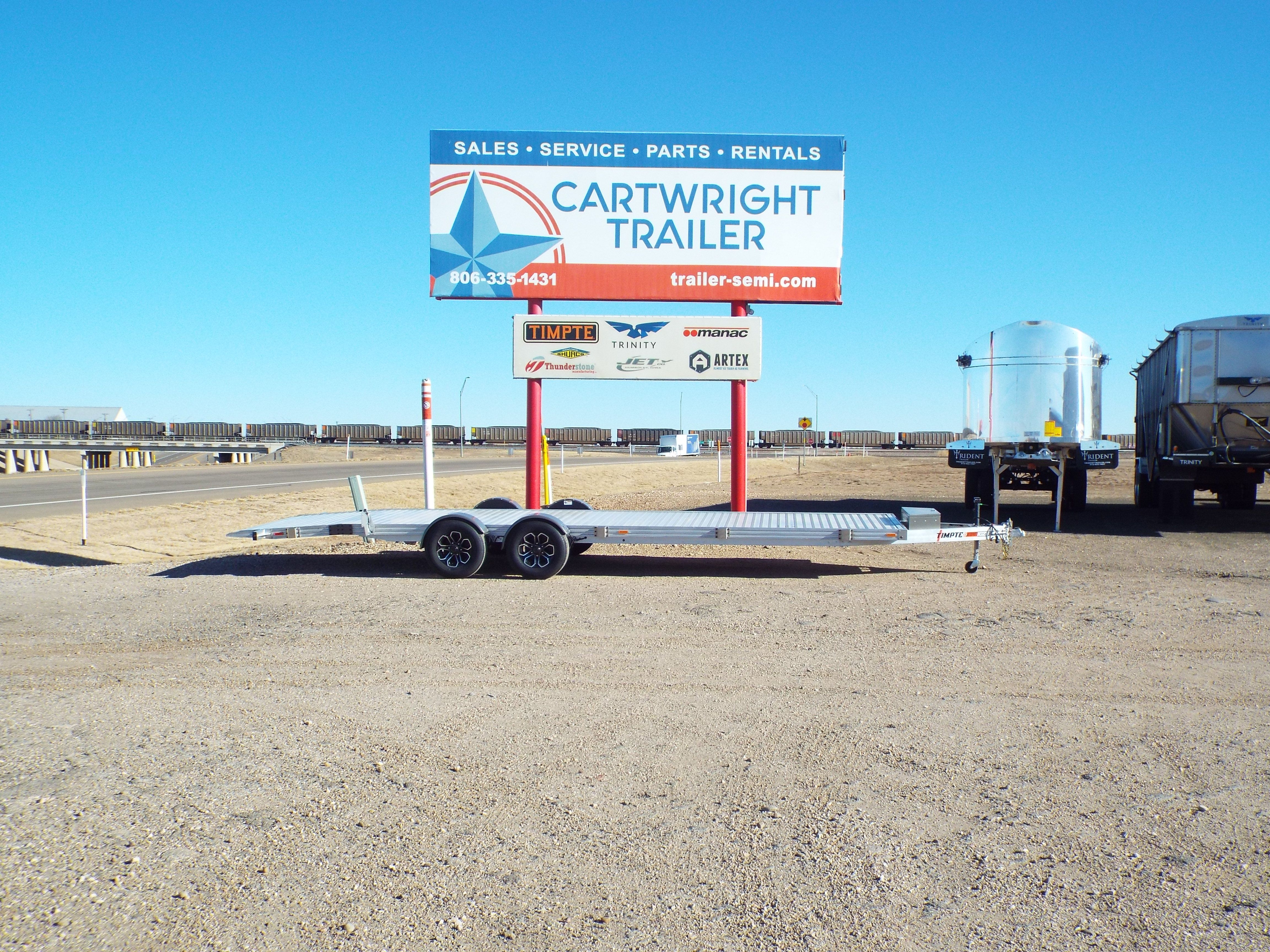

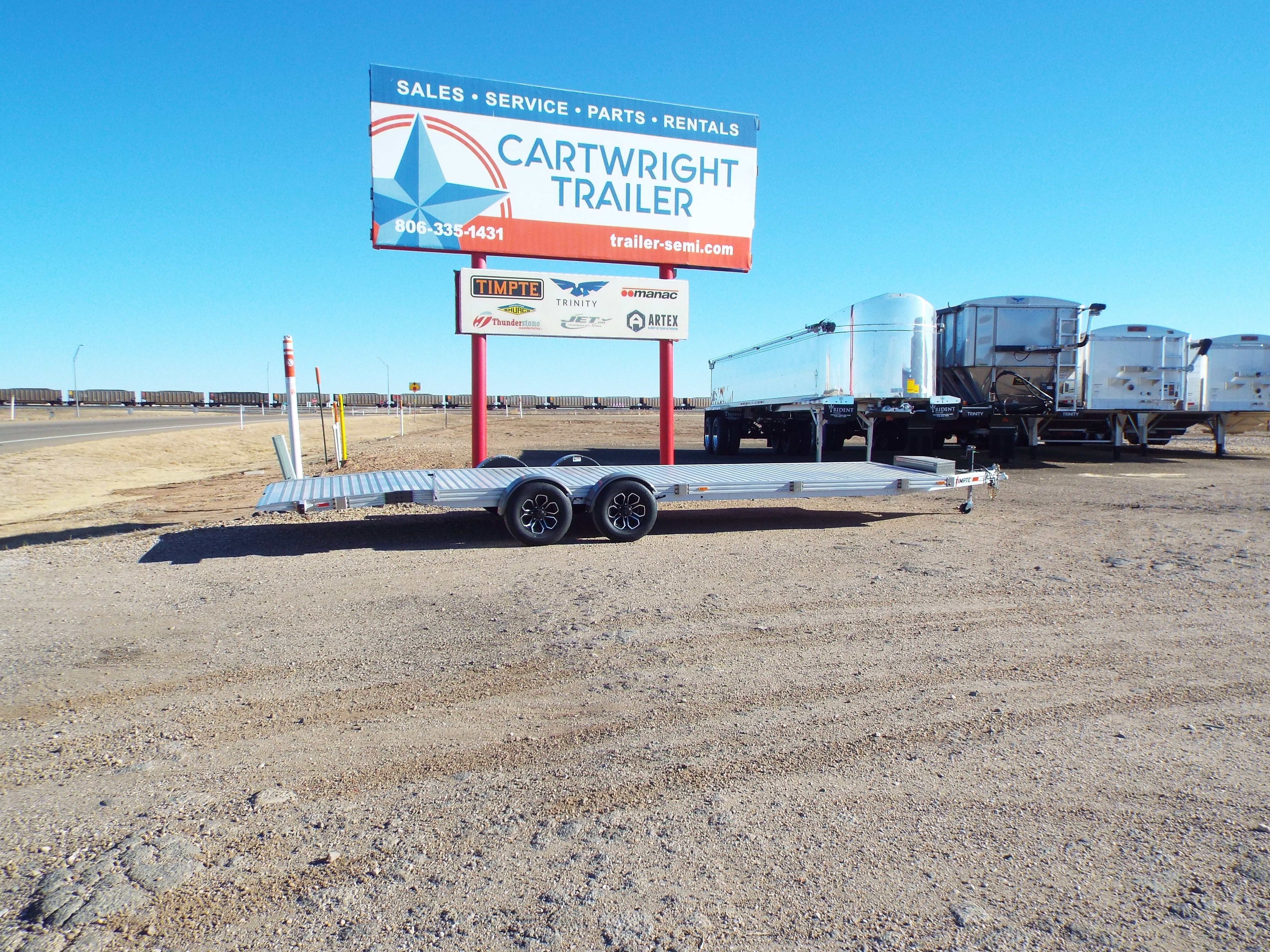

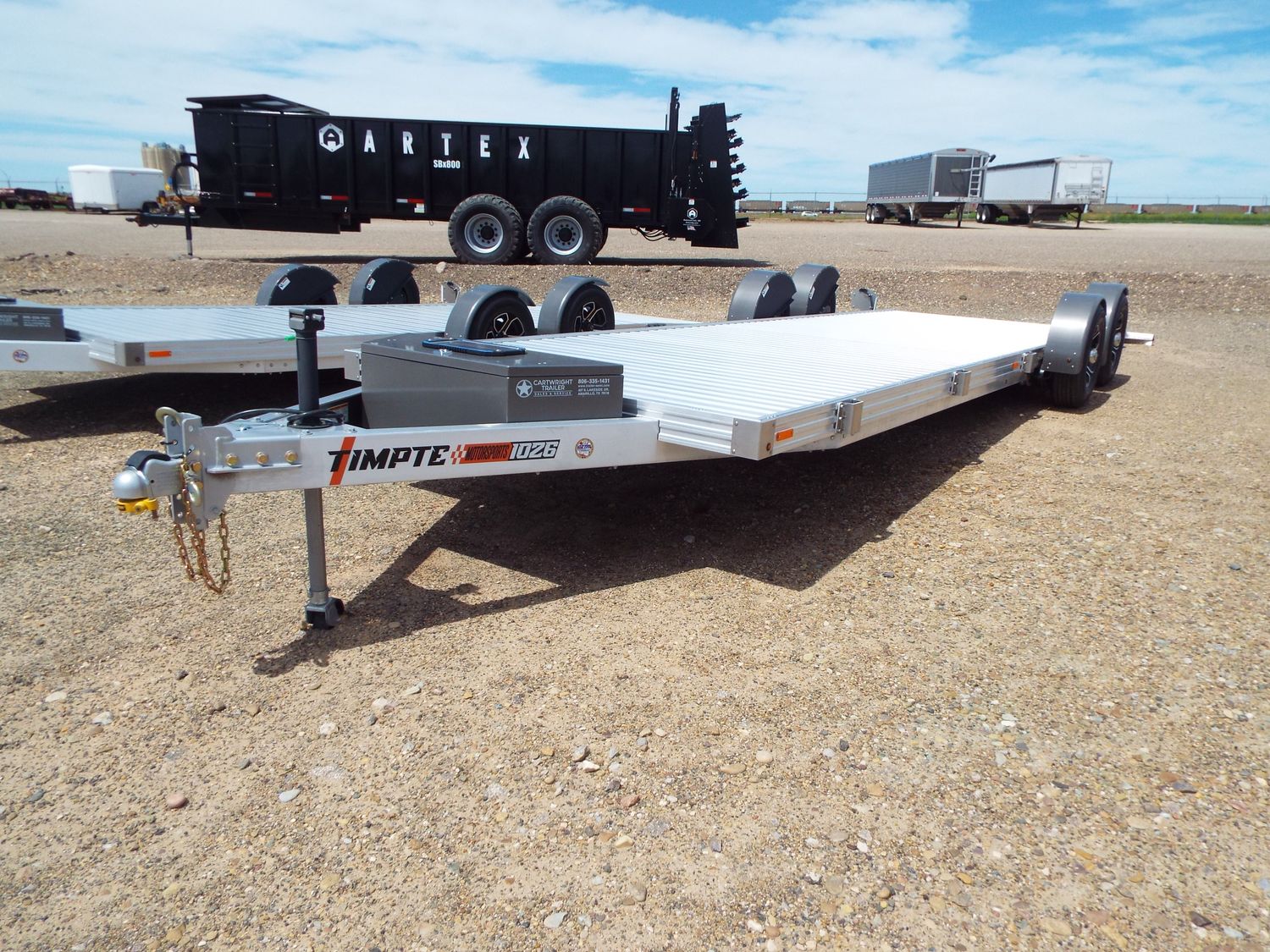

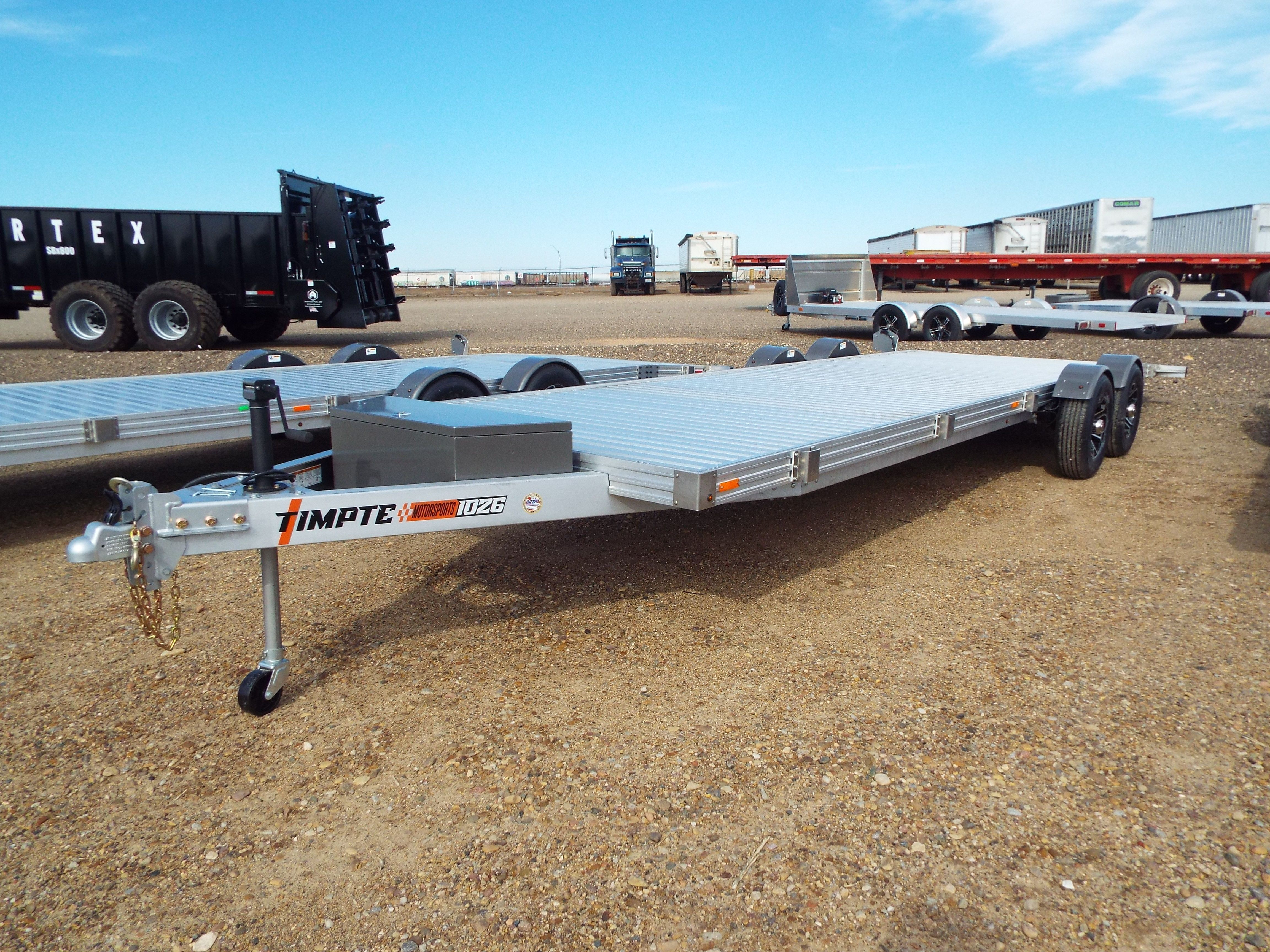

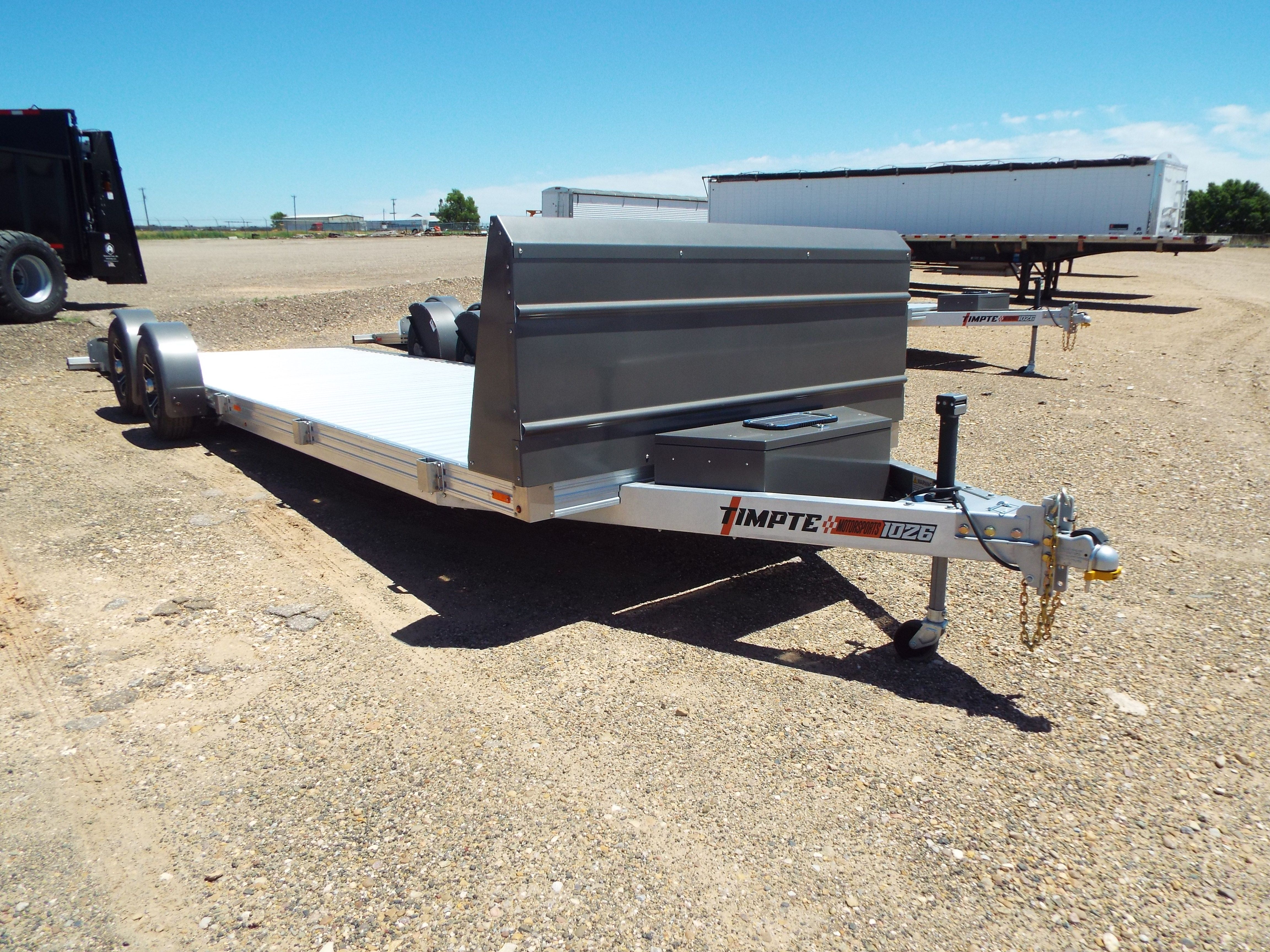

Model: 1026
GVW: 10000lbs
Deck Size: 26' x 81”
Empty Weight: Est. 2,640 lbs
Overall Width: 102"
Overall Length: 31’ 2”
Tongue Length: 58.5"
Deck Height: 24"
Loading Angle: 4 Degrees
Wheel Size: 15"
Tire Size: ST225/75R15
Axle/Suspension: Torsion
Brakes: Electric Self Adjusting
Coupler: 2-5/16”
Coupler Position: Adjustable
Jack Style: Side Crank
Jack Rating: 2,000 lbs
Tie-Downs: 4 D-Rings (24 Mounting Locations - 10 per side 4 in front)
Stake Pockets: 4
Lighting: LED

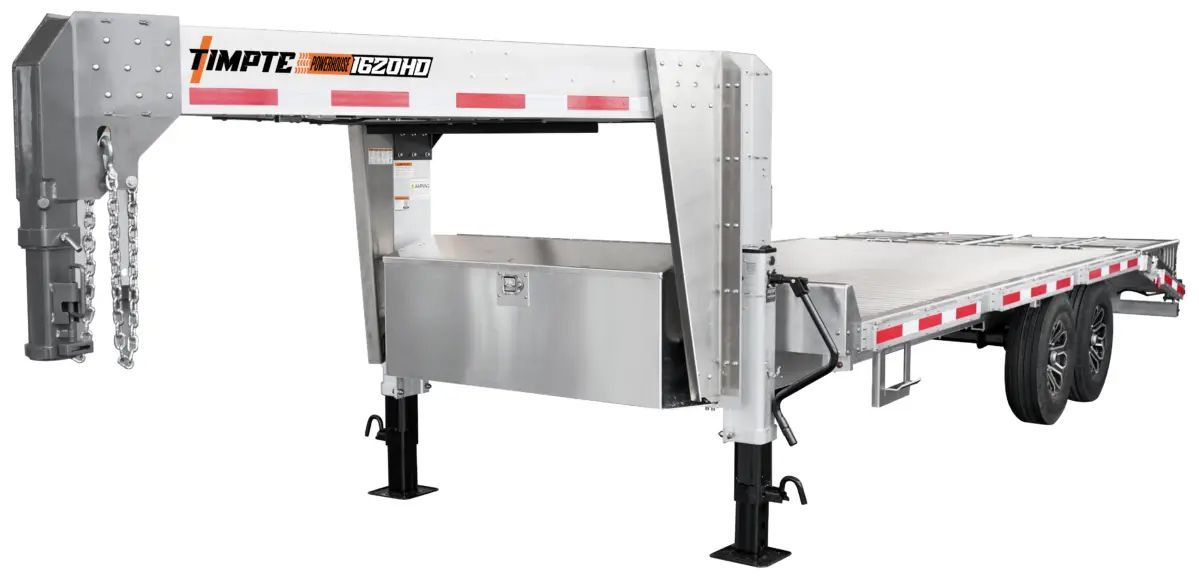

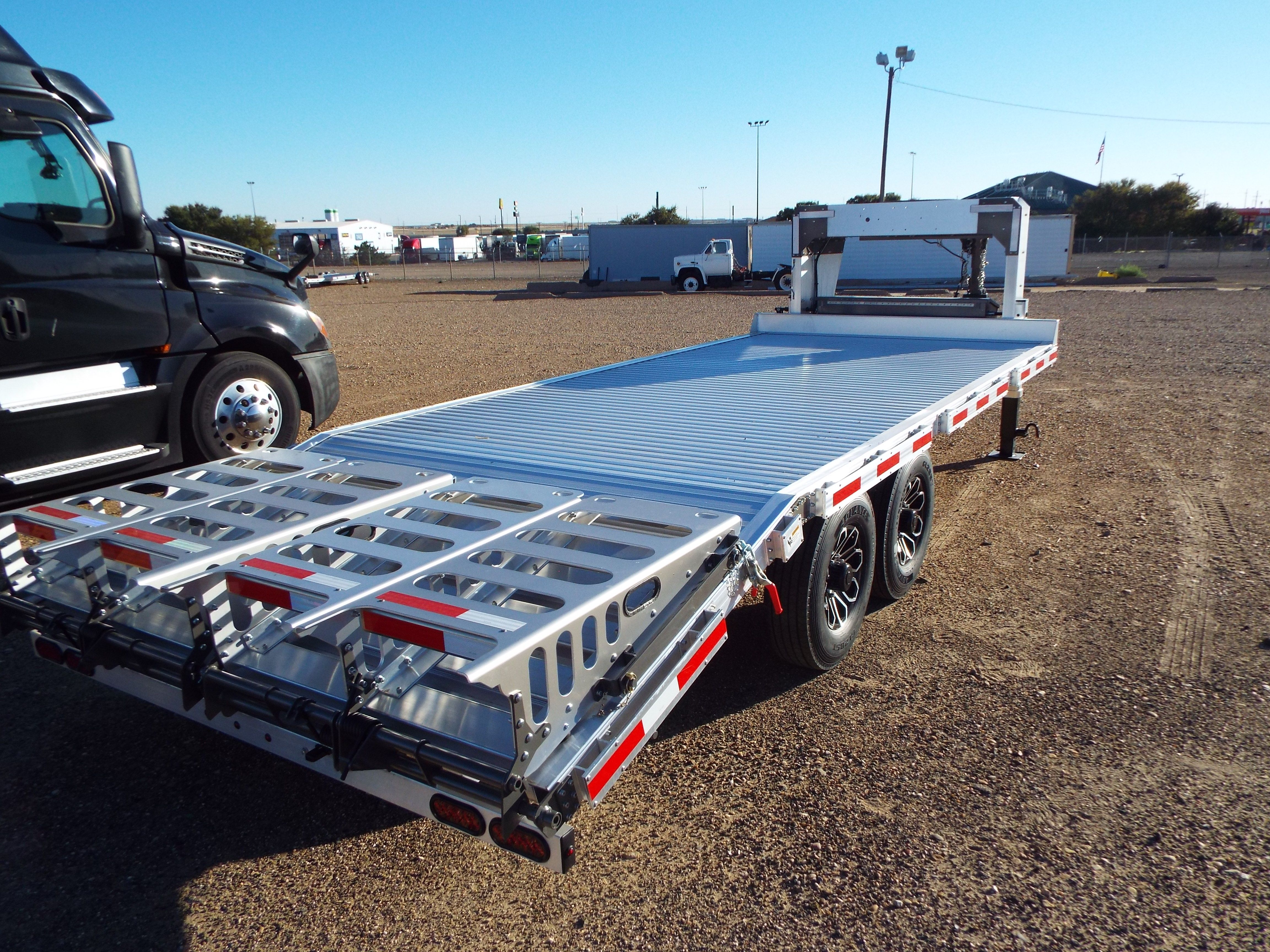

1620 Powerhouse Gooseneck Specs
Overall Width 102”
Overall Length 28’
Payload Capacity 12,540 lbs.
Ramp Length Approx. 4’
Tongue Length 96”
Deck Height 35”
Loading Angle 14°
Overall Deck Length 20’
Dovetail Length 60”
Wheel Size 16”
Tires ST235/80R16G - 14 ply
Number of Lug Bolts 8 per wheel (32)
Axle 8K Fixed
Suspension Rubber Torsion
Brakes Electric Self-Adjusting
Coupler 2-5/16”
Coupler Position Adjustable
Jack Style Dual 12K Jacks
Jack Rating 12,000 lbs. each(24,000 lbs. total)
Stake Pockets 12 per side (24 total)
Lighting LED

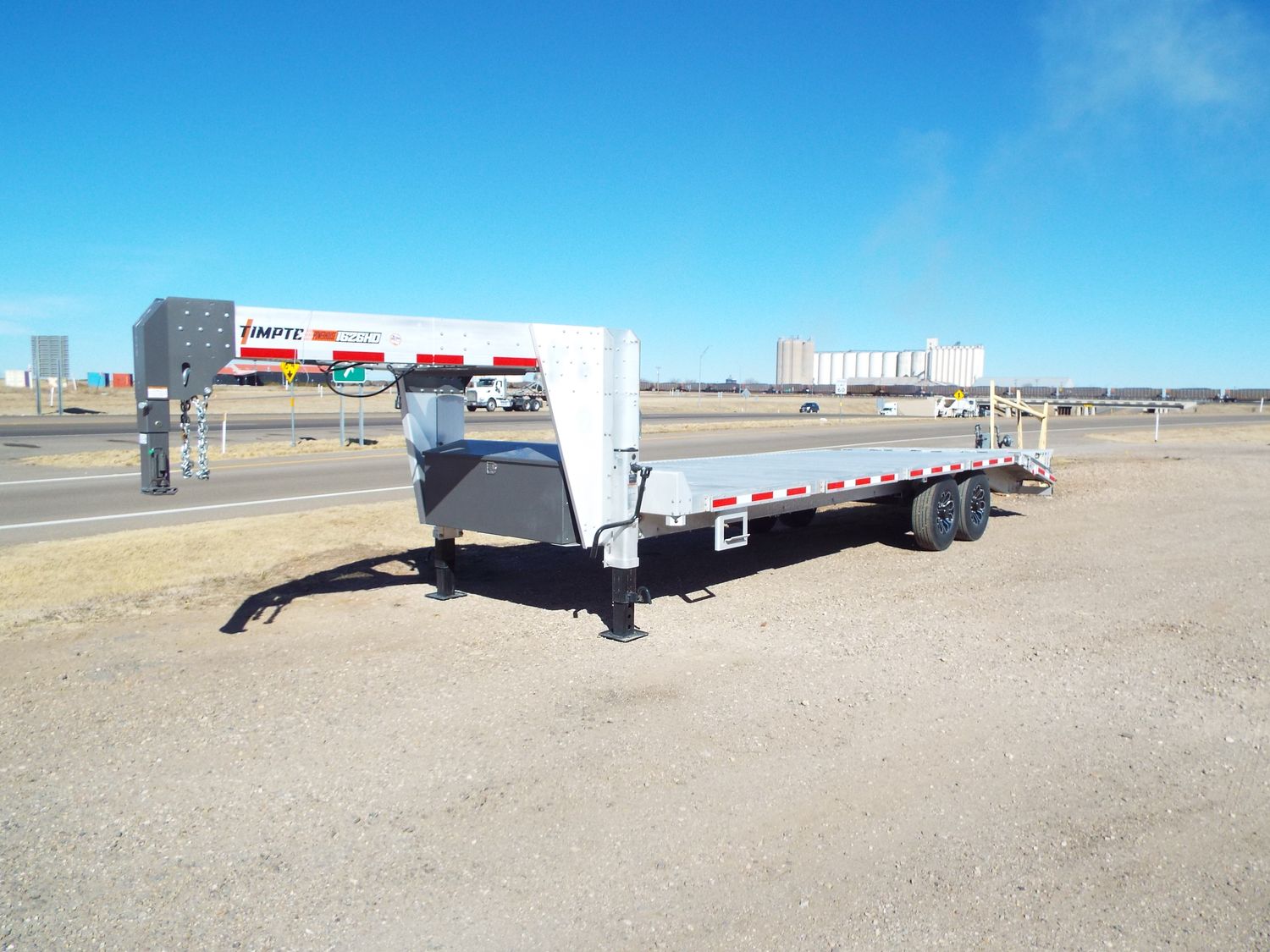

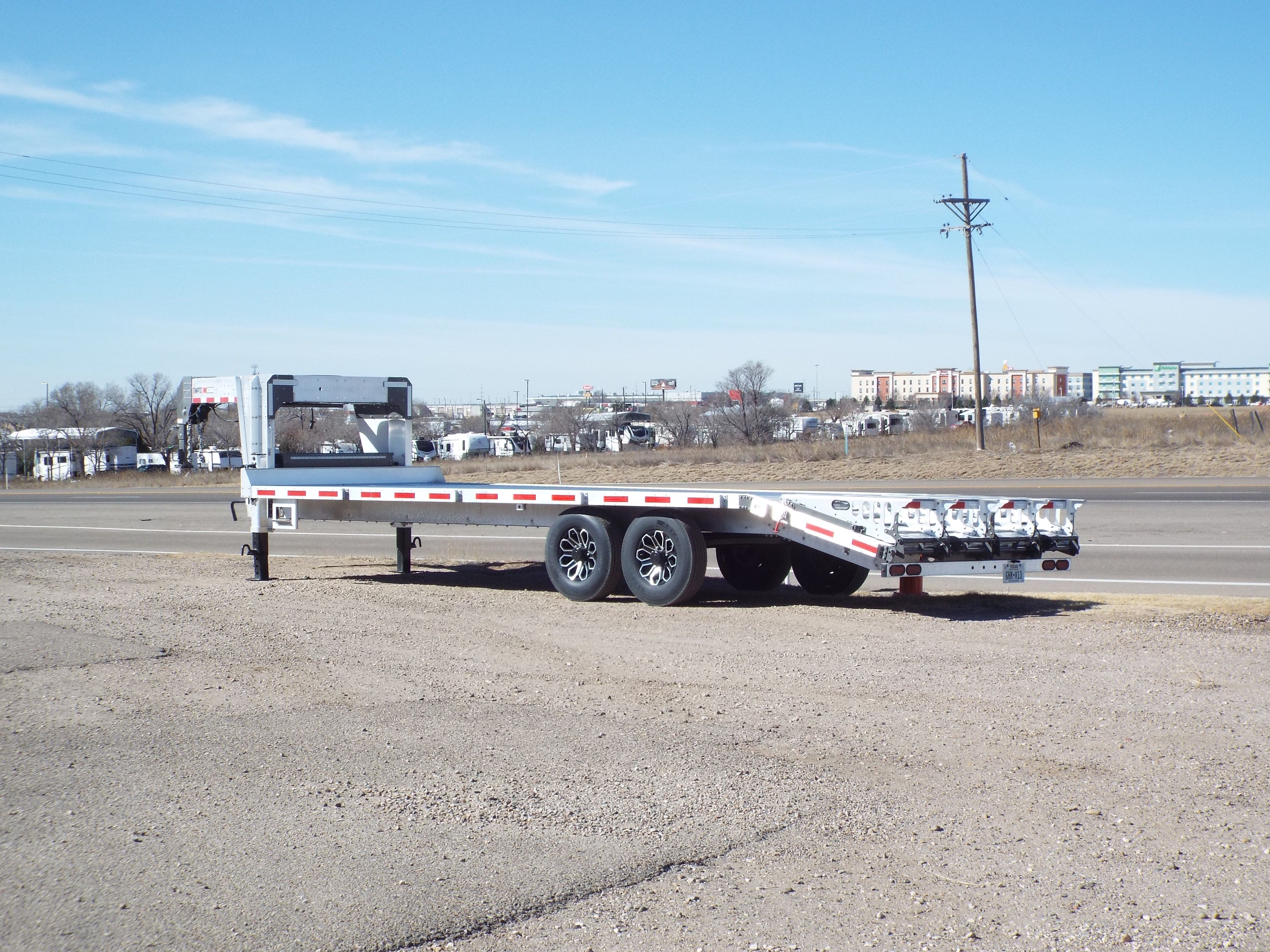

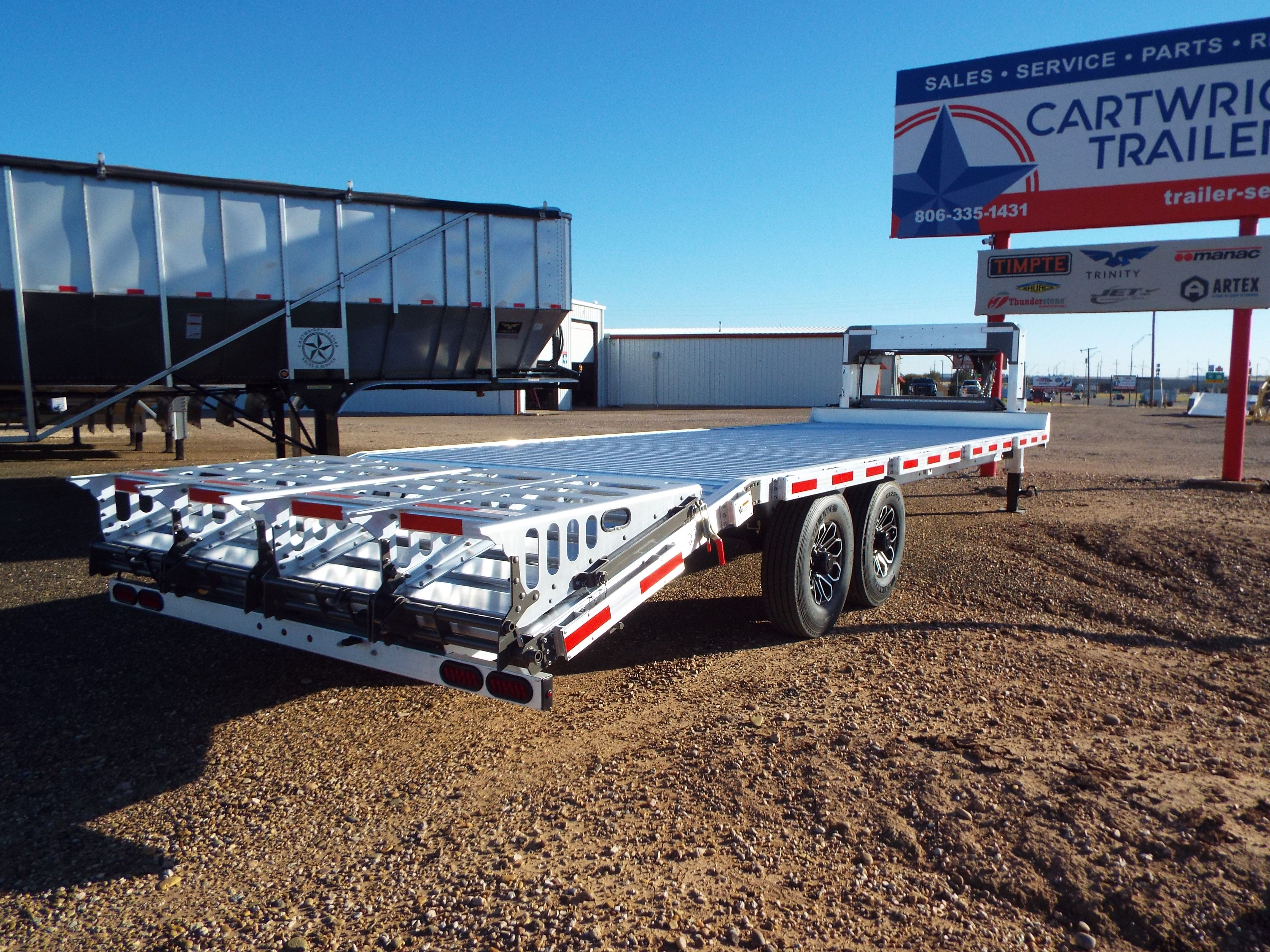

1626 Powerhouse Gooseneck Specs
Overall Width 102”
Overall Length 32’
Payload Capacity 12,140 lbs.
Ramp Length Approx. 4’
Tongue Length 96”
Deck Height 35”
Loading Angle 14°
Overall Deck Length 25’-4”
Dovetail Length 60”
Wheel Size 16”
Tires ST235/80R16G - 14 ply
Number of Lug Bolts 8 per wheel (32)
Axle 8K Fixed
Suspension Rubber Torsion
Brakes Electric Self-Adjusting
Coupler 2-5/16”
Coupler Position Adjustable
Jack Style Dual 12K Jacks
Jack Rating 12,000 lbs. each (24,000 lbs. total)
Stake Pockets 14 per side (28 total)
Lighting LED
Trailer Features
ALL ALUMINUM CONSTRUCTION
Aluminum has many advantages over steel as a trailer manufacturing material. Its vastly superior corrosion resistance will ensure your trailer has lower maintenance costs, longer life, and higher resale value. Its lighter weight means it is easier to pull and improves tow vehicle gas mileage. Timpte’s proven, state-of-the-art manufacturing techniques ensure that your new aluminum trailer will provide higher quality and overall durability compared to their steel counterparts.

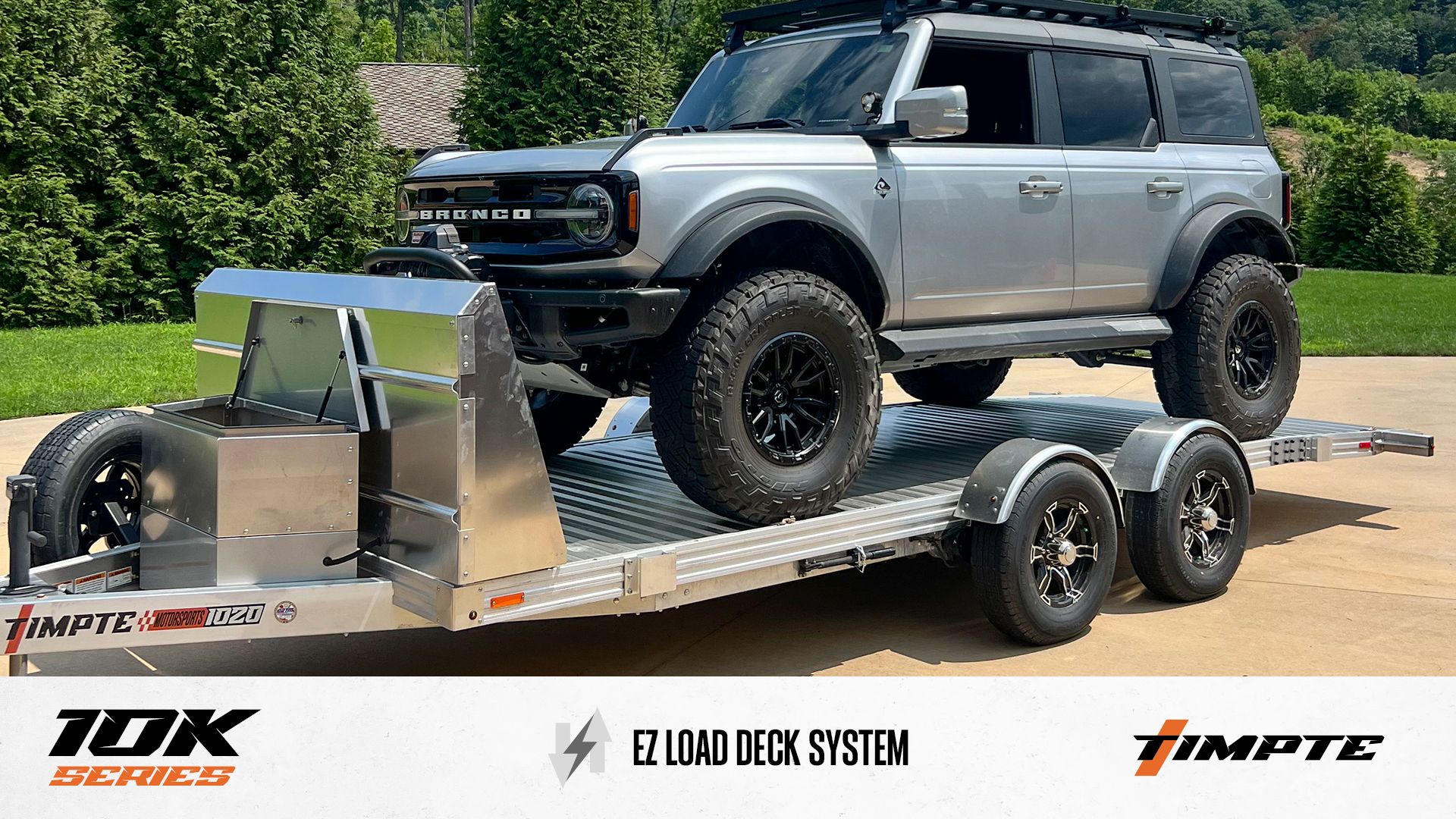

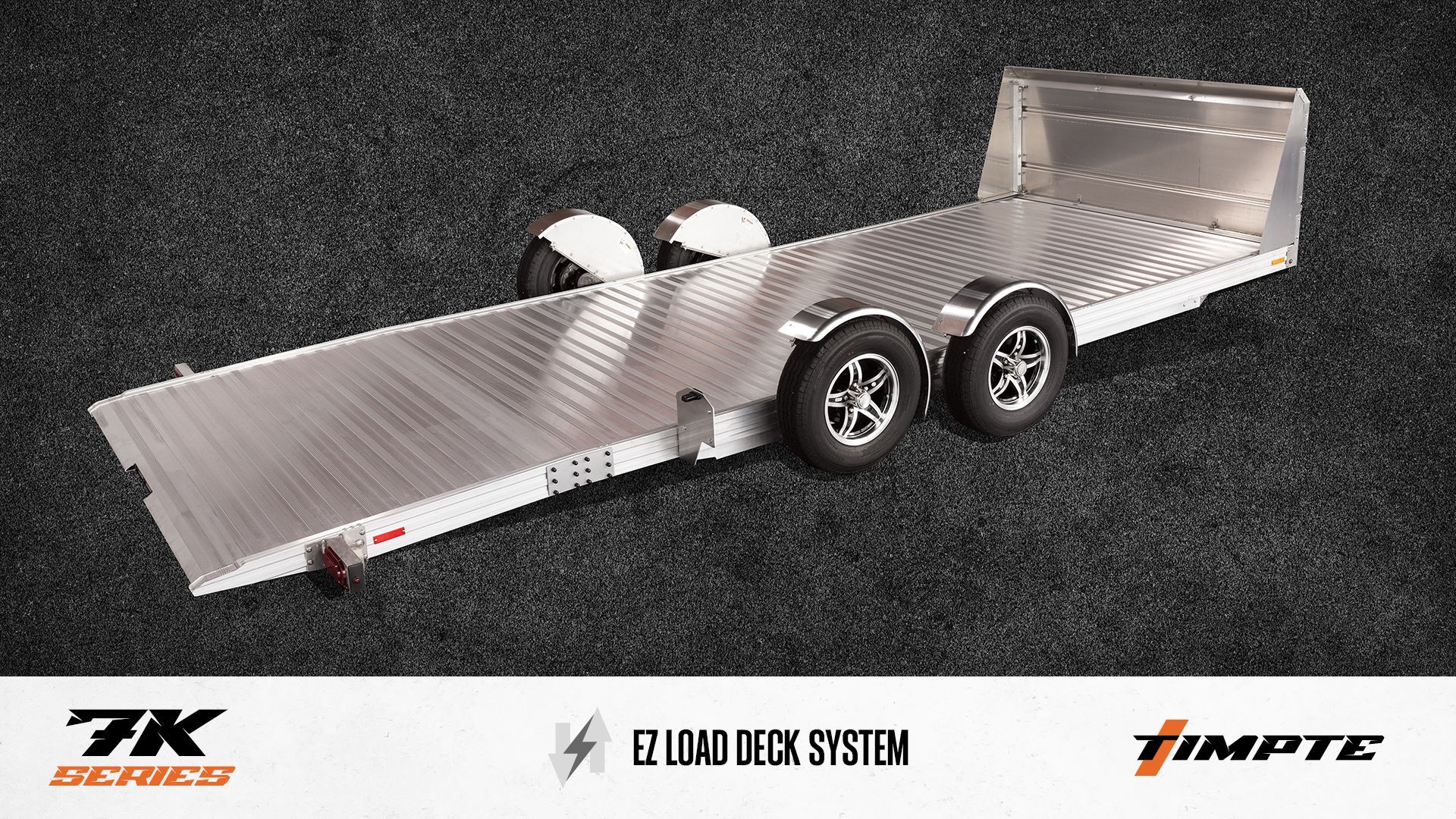

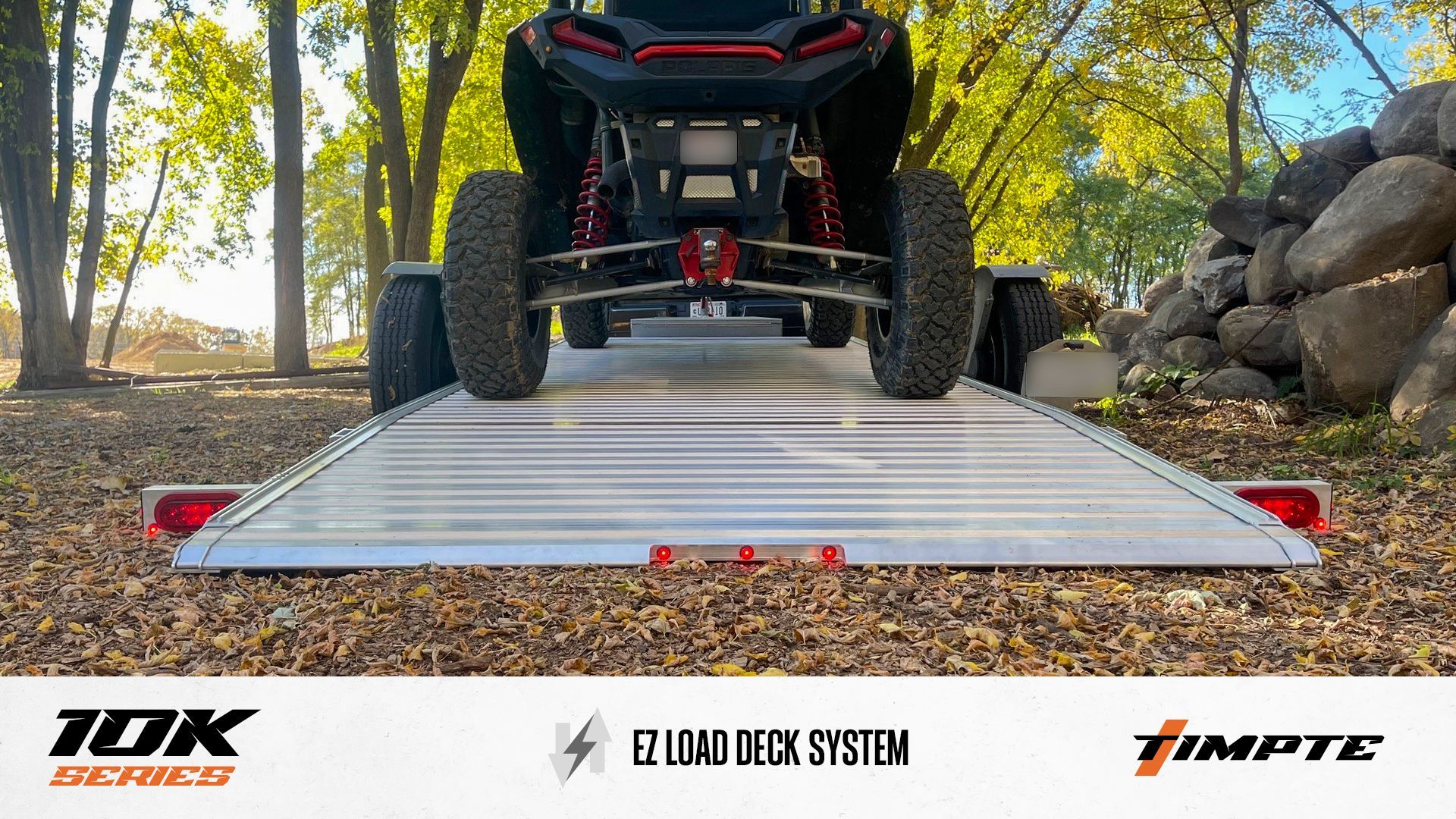

EZ-LOAD POWERED DECK SYSTEM

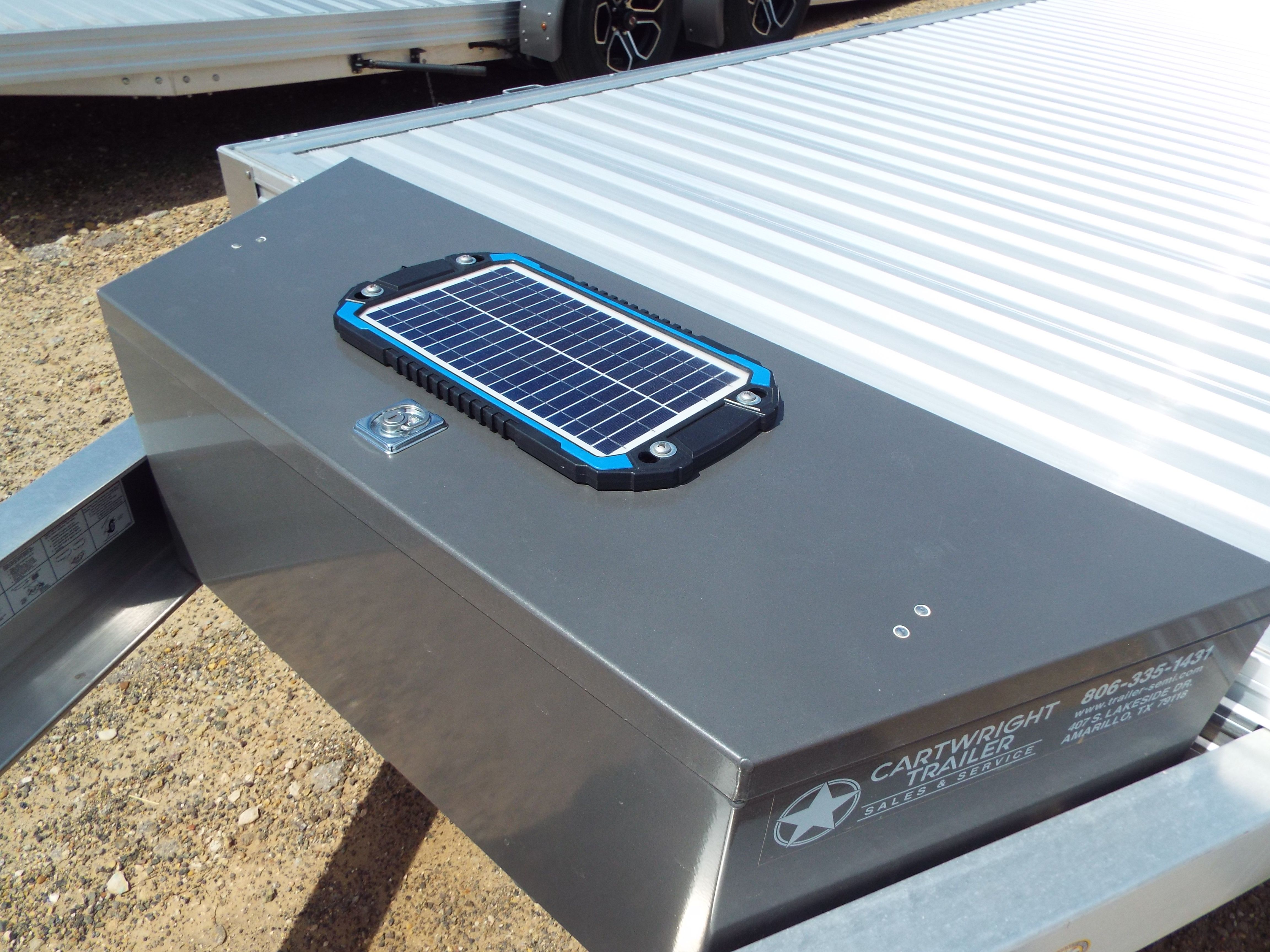

Timpte’s unique suspension system, available on select models, enables the user to raise and lower the equipment trailer by using a remote transmitter or switch located at the toolbox storage system. The patent pending design provides a 4-degree approach angle, enabling easy loading of equipment with minimal ground clearance; such as scissor lifts, sports cars, motorcycles, and so much more. No need to store or install separate loading ramps as the deck becomes your ramp. Battery power enables the user to operate the loading deck without being connected to the tow vehicle and an optional solar panel will charge the battery when power is not available through the RV plug.
SPACE SAVING DESIGN
Additional benefits of the EZ-Load powered deck system includes the ability to use it to store your equipment. Simply place the EZ-Load deck in its fully lowered position and park your equipment on it.
THEFT PREVENTION
Securing your investment has never been easier. You no longer require chains and padlocks to protect your trailer when not in use. Placing the EZ-Load deck in its fully lowered position, removing the master switch, and locking the toolbox ensures it will remain exactly where your left it.
